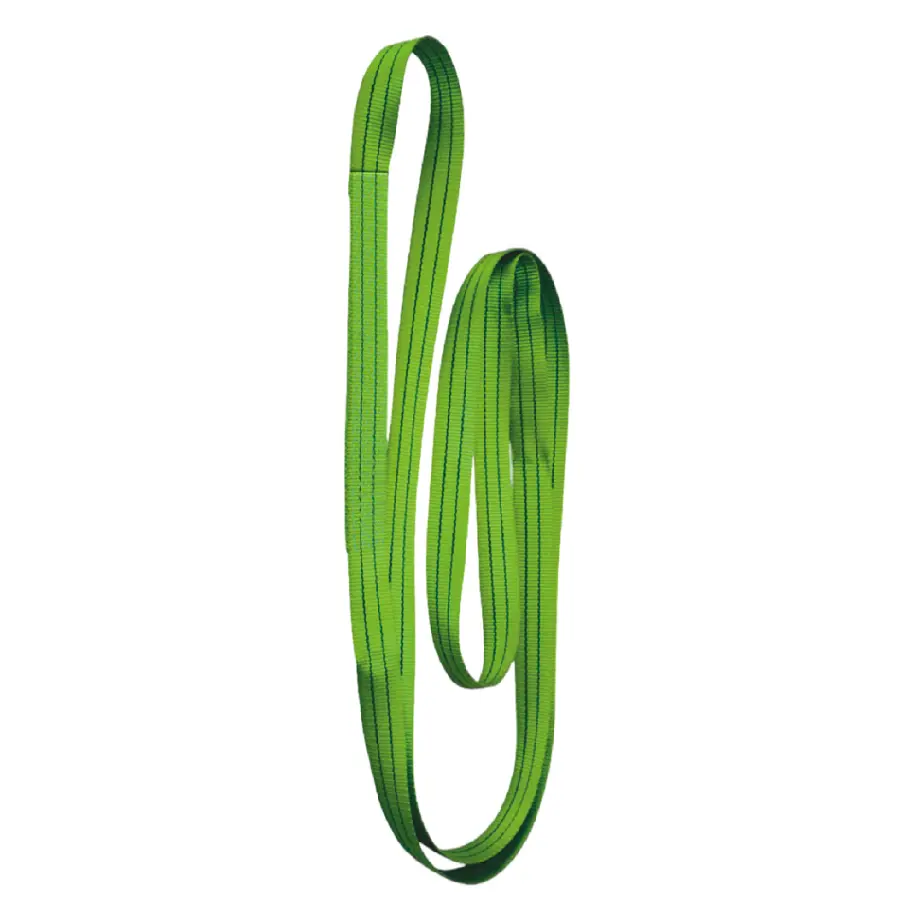

The sling has high strength and the tonnage can be identified by different colors, which improve labor efficiency and reduce costs. In addition, these slings have corrosion resistance and excellent wear resistance, and have a wide range of applications. Endless webbing slings can be used in various lifting places such as ports, steel, and machinery. Endless webbing slings comply with EN1492-1, AS1353, JB/T8521.1 and CE GS standards.
Exceptional wear resistance and corrosion resistance engineered for heavy industrial lifting.
Clear international color coding helps operators easily recognize lifting capacity.
Fully compliant with EN1492-1, AS1353, JB/T8521.1, and CE GS certifications.
| Code | Color | Single Max, Working Load Limit (kg) | 2-Legs Max, Working Load Limit (kg) | Approx Width (mm) | Min Length (m) | Max Length (m) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Upright | Choked | Basket Hitch (β) | Upright 45° | Choked 45° | Upright 45°-60° | Choked 45°-60° | ||||||||||
| 0°-7° | 7°-45° | 45°-60° | 45° | |||||||||||||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 1.4 | 1.12 | 1.0 | 0.8 | 5:1 | 6:1 | 7:1 | ||||
| EW-A-10 | Violet / 紫色 | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 700 | 1,400 | 1,120 | 1,000 | 800 | 25 | 25 | 30 | 1 | 100 |
| EW-A-20 | Green / 绿色 | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 1,400 | 2,800 | 2,240 | 2,000 | 1,600 | 50 | 50 | 60 | 1 | 100 |
| EW-A-30 | Yellow / 黄色 | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 2,100 | 4,200 | 3,360 | 3,000 | 2,400 | 75 | 75 | 90 | 1 | 100 |
| EW-A-40 | Grey / 灰色 | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 2,800 | 5,600 | 4,480 | 4,000 | 3,200 | 100 | 100 | 120 | 1 | 100 |
| EW-A-50 | Red / 红色 | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 3,500 | 7,000 | 5,600 | 5,000 | 4,000 | 125 | 125 | 150 | 1 | 100 |
| EW-A-60 | Brown / 棕色 | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 4,200 | 8,400 | 6,720 | 6,000 | 4,800 | 150 | 150 | 180 | 1 | 100 |
| EW-A-80 | Blue / 蓝色 | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 5,600 | 11,200 | 8,960 | 8,000 | 6,400 | 200 | 200 | 240 | 1 | 100 |
| EW-A-100 | Orange / 桔红 | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 7,000 | 14,000 | 11,200 | 10,000 | 8,000 | 250 | 250 | 300 | 1 | 100 |
| EW-A-120 | Orange / 桔红 | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 8,400 | 16,800 | 13,440 | 12,000 | 9,600 | 300 | 300 | 300 | 3 | 100 |
| EW-A-150 | Blue / 蓝色 | 15,000 | 12,000 | 40,000 | 28,000 | 15,000 | 14,000 | 28,000 | 22,400 | 15,000 | 12,000 | 200 | 200 | 240 | 3 | 100 |
| EW-A-200 | Orange / 桔红 | 20,000 | 16,000 | 60,000 | 42,000 | 20,000 | 21,000 | 42,000 | 33,600 | 20,000 | 16,000 | 250 | 250 | 300 | 3 | 100 |
| EW-A-250 | Orange / 桔红 | 25,000 | 20,000 | 50,000 | 35,000 | 25,000 | 17,500 | 35,000 | 28,000 | 25,000 | 20,000 | 300 | 300 | 300 | 3 | 100 |
| EW-A-300 | Orange / 桔红 | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 21,000 | 42,000 | 33,600 | 30,000 | 24,000 | 300 | 300 | 300 | 3 | 100 |
| EW-A-400 | Orange / 桔红 | 40,000 | 32,000 | 80,000 | 56,000 | 40,000 | 28,000 | 56,000 | 44,800 | 40,000 | 32,000 | - | - | - | 3 | 100 |
| EW-A-500 | Orange / 桔红 | 50,000 | 40,000 | 100,000 | 70,000 | 50,000 | 35,000 | 70,000 | 56,000 | 50,000 | 40,000 | - | - | - | 3 | 100 |
